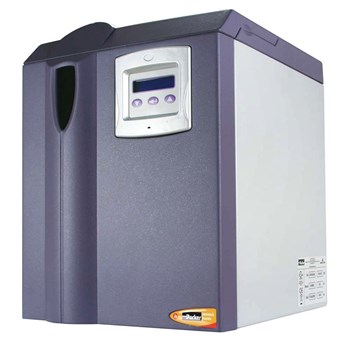

110H-MD - Parker Domnick Hunter - Hydrogen Generator
The Parker domnick hunter H-MD ultra high purity hydrogen gas generators offer the optimum combination of safe operation, reliability, performance and low cost of ownership.
Utilizing field proven PEM cell technology, hydrogen is produced on demand from deionised water and electricity, at low pressure and with minimal stored volume. Innovative control software allows unrivaled operational safety and reliability.
The H-MD generators ideally supply GC and GC/MS carrier gas, in addition to all known combustion detectors that are routinely used in today's laboratory workflows. Four models operate at flow rates; 160 ml/min, 250 ml/min, 500 ml/min and 1100 ml/min.
A range of tailored service contracts, extended warranties and global manufacturing capabilities provide comprehensive aftermarket support.
Product Specification
| Model | 110H-MD |
| FlowRate ml/min | 1100 |
| Purity* % | >99.99995 |
| Water Consumption (24/7,full flow) | 10.60 |
| Delivery Pressure - bar g | 0.69-6.89 |
| Delivery Pressure - psi g | 10-100 |
| Optional Auto Water Fill (AWF) | Standard |
Technical Data
| Ambient Temperature range | 5-40 deg C |
| 41-104 deg F | |
| Water Supply Pressure* | 0.1 bag g |
| 1.15 psi g | |
| Water Supply Flow rate* | 1 L/min |
