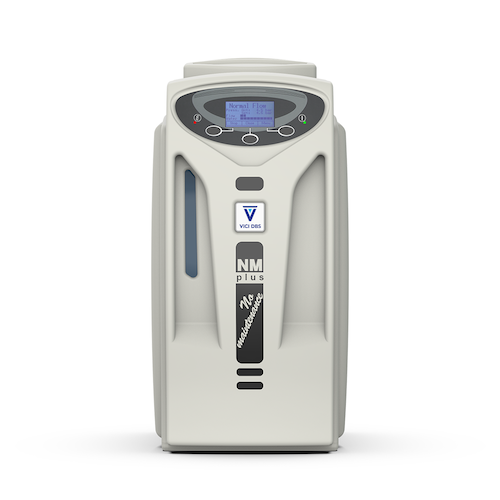

NM Plus 100 Hydrogen Generator
The NM Plus 100 Hydrogen Generator enhances the high performance of the PG Plus with the addition of a unique no-maintenance purification system, resulting in ultra-high purity carrier-grade gas. The innovative software control and safety alarm capability maximize the benefits of using hydrogen carrier gas while minimizing the safety concerns.
NM PLUS 100 FEATURES:
▪︎ Flow rate 100 mL/min
▪︎ Purity >99.99996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ Unique patented automatic dryer system
▪︎ Unique 100% titanium electrolytic cell
▪︎ No maintenance
▪︎ 2-year standard warranty
Specification
| Flow mL/min | 100 |
| Purity | >99.99996% |
| Dew point at 7 barg (100 psig) | -73ºC (-99ºF) |
| Outlet pressure barg (psig) | 1.4 to 11 (20 to 160) |
| Technology | PEM (Proton Exchange Membrane) - 100% Titanium cell |
| Drying system | No maintenance cold dual dynamic regeneration system |
| Deionized water quality | minimum <1 μS/cm @25ºC - 1 MΩ-cm@25ºC - ASTM II recommended <0.2 μS/cm @25ºC - 5 MΩ-cm @25ºC - ASTM II |
| Internal water tank (liters) | 2.5 |
| Safety | Automatic shut down - internal/external hydrogen leak, overpressure, and low water |
| Display | Touch screen with operating parameters, system status, and safety alarms |
| LED indicators | Power on/off, system ready, errors |
| Interface | USB mod A |
| Electrical supply | 110-120V 60Hz / 220-240V 50Hz |
| Power consumption watts | 100 |
| Product Dimensions mm (in) | 230W x 507H x 370D (9W x 19H x 15D) |
| Product Weight kg (lbs) | 14 (31) |
| Shipping dimensions | 580W x 570H x 400D (22.8W x 22.4H x 15.7D) |
| Shipping weight kg (lbs) | 18 (39.5) |
| Operating temperature ºC (oF) | 15 to 35 (59 to 95) |
| Outlet connection | 1/8" Compression |
| Certification | CE, FCC, MET (UL and CSA compliant) |
