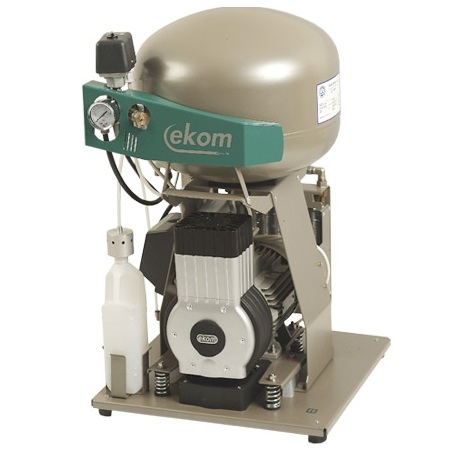

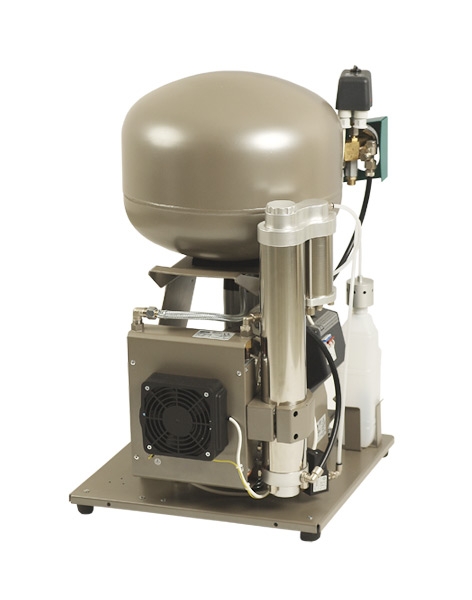

Ekom - DK50 PLUS Oil Free Compressor
Call for quote

Oil-less compressor EKOM of the line DK50 PLUS is the source of clean, presssed, oil-free air designed for driving of dental equipment and devices. With regard to its parameters and capacity of the air tank of 25 litres is suitable for supplying of one dental unit or devices in dental laboratories. Air produced by oil-free compressor provides a higher degree of hygiene and quality of work of the dentist and does not pollute the working environment by heterogeneous substances.



Model Desciption
DK50 Plus
DK50 Plus M Including dryer
DK50 Plus S Including soundproof cabinet
DK50 Plus SM Including dryer and soundproof cabinet



For technical specifications of each model, please see below.



Technical specification DK50 PLUS DK50 PLUS S DK50 PLUS /M DK50 PLUS S/M
Number of dental units 1 1 1 1
Nominal voltage 230V/ 50 (60) Hz 230V/ 50 (60) Hz 230V/ 50 (60) Hz 230V/ 50 (60) Hz
110V/ 60 Hz 110V/ 60 Hz 110V/ 60 Hz 110V/ 60 Hz
Max. curren 3,4 (4,3) A 3,4 (4,3) A 3,6 (4,5) A 3,6 (4,5) A
8,6 A 8,6 A 8,8 A 8,8 A
Output of the motor 0,55 kW 0,55 kW 0,55 kW 0,55 kW
Compressor efficiency 75 l.min– 1/ 5 bar 75 l.min– 1/ 5 bar 75 l.min– 1/ 5 bar 75 l.min– 1/ 5 bar
Displacement 105 l.min– 1 105 l.min– 1 105 l.min– 1 105 l.min– 1
Working pressure of compressor * 4.5 – 6 bar 4.5 – 6 bar 4.5 – 6 bar 4.5 – 6 bar
Air tank capacity 25 lit. 25 lit. 25 lit. 25 lit.
Mode of operation S1-100% S3-80% S3-60% S3-60%
Degree of air drying - - atmospheric dew point -20oC atmospheric dew point -20oC
Noise level ≤ 66 dB A ≤ 47 dB A ≤ 67 dB A ≤ 48 dB A
Weight 48 kg 83 kg 58 kg 93 kg
Dimensions (w x d x h) 460x460x690 mm 560x665x860 mm 460x515x690 mm 560x665x860 mm
