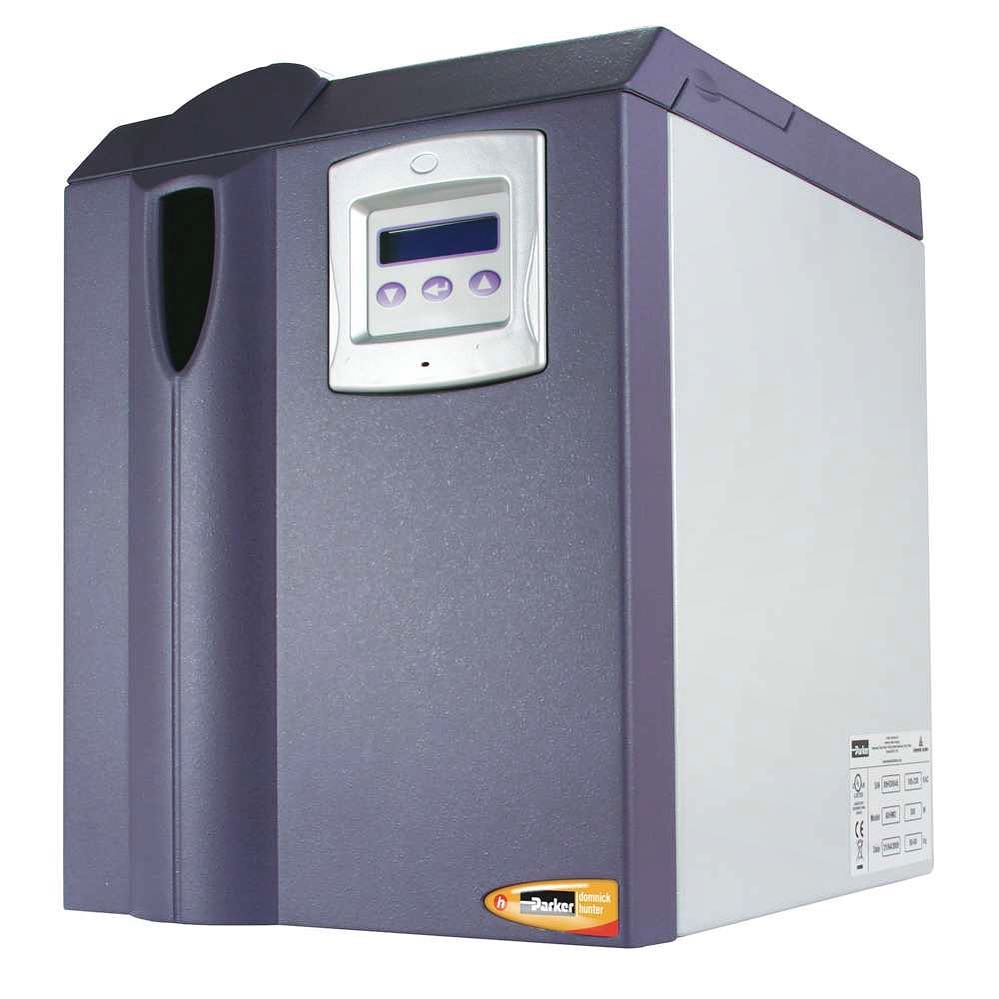

20H - Parker Domnick Hunter - Hydrogen Generator

The Parker domnick hunter H high purity hydrogen gas generators offer the optimum combination of safe operation, reliability and performance.

Utilizing field proven PEM cell technology, hydrogen is produced on demand from deionized water and electricity, at low pressure and with minimal stored volume. Innovative control software allows unrivaled operational safety and reliability.

The H generators ideally supply fuel gas to all known GC combustion detectors used in today's laboratory workflows. Three models operate at flow rates; 160 ml/min, 250 ml/min and 500 ml/min.

A range of tailored service contracts, extended warranties and global manufacturing capabilities provide comprehensive aftermarket support.



Product Specification

Model 20H
FlowRate ml/min 160
Purity* % >99.9995
Water Consumption (24/7,full flow) 1.25
Delivery Pressure - bar g 5-100
Delivery Pressure - psi g 0.3-6.89
Optional Auto Water Fill (AWF) YES



Technical Data

Ambient Temperature range 5-40 deg C
  41-104 deg F
Water Supply Pressure* 0.1 bag g
  1.15 psi g
Water Supply Flow rate* 1 L/min
